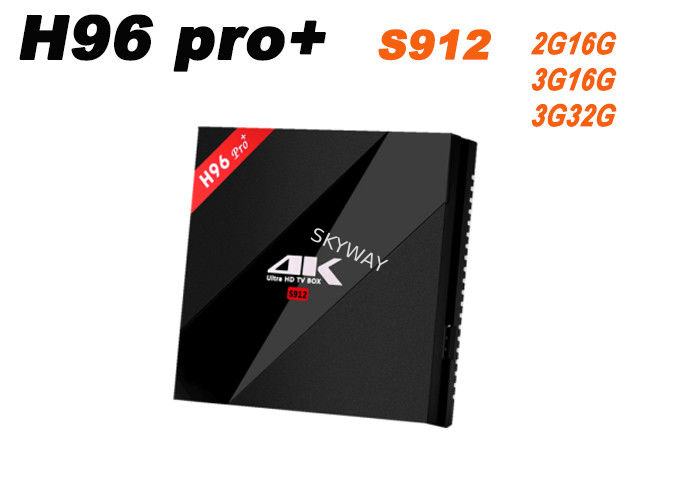

Android 7.1 4K TV Box H96 Pro Plus Amlogic S912 Octa Core 64Bit 2.4G/5G Wifi Bluetooth 4.1 HD Media Player Set Top Box

Highlights

Amlogic S912

H96 PRO+ comes with S912 CPU which is a high performance octa core 64bit chipset which is known for a maximum clock speed of up to 1.5GHz. Apps will never run so smoothly in other chipset devices. People can easily enjoy many hot games and APKs with its 3GB DDR3 RAM and 32GB Flash ROM.

DDR3 3GB RAM, eMMC 32GB Flash

It boasts DDR3 3GB RAM, and eMMC 32GB Flash, advantageous in performance, security and reliability, ascribing to the eMMC memory, ultimately delivering a richer end-user experience.

IEEE 802.11ac

IEEE 802.11ac, one of the wireless networking standards in 802.11 family, is developed in the IEEE Standards Association process for the purpose of high-throughput wireless local area networks (WLANs) on the 5 GHz band.

Gigabit LAN

Gigabit LAN provides a data rate of 1 billion bits per second.

4K Resolution

The latest in a line of broadcast and media resolutions, 4K is due to replace 1080p as the highest-resolution signal available for in-home movies and television. With a minimum resolution of 3,840 pixels wide and 2,160 pixels high, making it the equivalent to two 1080p screens in height and two in length.

Description

Specification

<<

Model No.:	H96 pro+(3G+32G)	H.264-H.265,4Kx2K 60FPS Android TV BOX HDMI 2.0
Android OS		Android 7.1.1 OS
CPU		Amlogic S912 Octa core ARM Cortex-A53 CPU up to 2GHz (DVFS)
GPU		ARM Mali-T820MP3 GPU up to 750MHz (DVFS)
RAM		3GB DDR3(DDR4)
Memory size		32GB EMMC Flash (8-32GB optional)
Language		Chinese,English...Multi-Language support
Storage Extension		Support MicroSD(TF) ,Up to 32GB
WIFI		2.4GHZ/5.8GHZ 802.11a/b/g/n /ac
Ethernet		Ethernet 100M/1000M
Bluetooth		BT4.1
Media format
HDMI		HDMI 2.0 up to 4K2K@60FPS
Video Output		Built-in HDMI 2.0a transmitter including both controller and PHY with HDR, CEC and HDCP 2,2, 4Kx2K@60 max resolution output
Video Codecs		o VP9-10 Profile-2 up to 4Kx2K@60fps o H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps o H.264 AVC HP@L5.1 up to 4Kx2K@30fps o H.264 MVC up to 1080P @60fps o MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) o WMV/VC-1 SP/MP/AP up to 1080P@60fps o AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps o MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) o MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) o RealVideo 8/9/10 up to 1080P@60fps o WebM up to VGA o Multiple language and multiple format sub-title video support o MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) o Supports JPEG thumbnail, scaling, rotation and transition effects o Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file
Image browser		Support JPG,JPEG,BMP,GIF,PNG,JFIF…etc photo format
Software Extension		Support Google Play & APK install
Protocol		Support DLNA,Miracast Protocol,Support DRM requirement.
Remote Control		Support Smart phone remote control,2.4GHZ wireless air mouse/Remote controller
IM Software		Support Skype/QQ/MSN/GTALK (Depends on APK install)
Offic Software		WORD/EXCEL/PDF(Depends on APK install)
Interface
HDMI Out		1XHDMI
USB Port		1XUSB host + 1XUSB OTG
SPDIF		1XSPDIF
AV		1XAV
Card Readere		1X Micro SD card (TF card) reader
Network		1xRJ45 LAN Port
Power Supply		1x5V2A DC
Accessories
power charger		1
Remote Control		1
giftbox		1
User Manual		1
HDMI cable		1
Air mouse		optional
wireless mouse		optional
