Place of Origin: | China |
Brand Name: | OEM |
Model Number: | i68 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | 1-69usd |
Packaging Details: | 20pcs /carton size: 44x34x30 cm |
Delivery Time: | 2-7days |
Payment Terms: | Paypal,TT,Western Union |
Supply Ability: | 50000pcs/months |
RK3368 64bits Octa Core 4K Android 5.1 TV Box I68 with 2GB RAM 16GB ROM
Highlights | |
i68 is the 64bit TV Box | |
Built-in Android 5.1 Lollipop OS | |
Rockchip RK3368 Octa Core CPU | |
Support 4K*2K H.265 Decording | |
HDMI 2.0, 4K*2K @60fbps | |
2.4GHz&5GHz Dual Band Wi-Fi | |
SGX6110 GPU | |
DDR3 2G and eMMC Flash 16GB | |
IEEE 802.11a/b/g/n/mimo, 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) AP6335 dual-band WIFI | |
Bluetooth 4.0 | |
Built-in common software, such as Google Play Store, YouTube, Skype, etc. | |
Built-in latest KODI | |
Miracast/ DLNA: projecting mobile phone/tablet data to TV screen (PS: unsupportable for Sony, Samsung,HTCmobiles, because of HDCP limitations) |
|
Accessorized with quality HDMI cable, power adapter,etc |
Specification | |
General | |
Brand | IONE |
Model | i68 |
Color | Black |
Material | Plastic |
System | |
Operating System | Google Android 5.1 |
CPU | Rockchip R3368 Octa Core up to 1.6GHz (Cortex-A53 64bit) |
GPU | SGX6110; support 4K*2K H.265/H.264 |
RAM | DDR3 2G |
ROM | Onboard eMMC Flash 16GB |
Extended Storage | Micro SD Card (Maximum support 64GB) |
Communication | |
Wifi Connectivity |
IEEE 802.11a/b/g/n(2G RAM version) |
Ethernet | 10/100M LAN |
Bluetooth | BT 4.0 |
Media | |
Video/Picture Supported | Main/Main10 HEVC/H.265 decoder by 4k@60FPS |
Support up to 4096x2304 resolution | |
Support up to 100Mbps bit rate | |
Embedded memory management unit(MMU) | |
Stream error detector (28 IDs) | |
Internal 128k cache for bandwidth reduction | |
Multi-clock domains and auto clock-gating design for power saving | |
Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC |
|
Error detection and concealment support for all video formats | |
Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264 |
|
H.264 up to HP level 5.2:4Kx2K@30fps (4096x2304) | |
MPEG-4 up to ASP level 5:1080p@60fps (1920x1088) | |
MPEG-2 up to MP:2160p@30fps (3840x2160) | |
MPEG-1 up to MP:1080p@60fps (1920x1088) | |
H.263:576p@60fps (720x576) | |
Sorenson Spark:1080p@60fps (1920x1088) | |
VC-1 up to AP level 3:1080p@30fps (1920x1088) | |
RV8/RV9/RV10:1080p@60fps (1920x1088) | |
VP6/VP8:2160p@24fps (3840x2160) | |
AVS:1080p@60fps (1920x1088) | |
MVC:2160p@30fps (3840x2160) | |
For AVS, 4:4:4 sampling not supported | |
For H.264, image cropping not supported | |
For MPEG-4, GMC(global motion compensation) not supported | |
For VC-1, upscaling and range mapping are supported in image post-processor |
|
For MPEG-4 SP/H.263/Sorenson spark, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit |
|
Resolution | 4K*2K |
Interfaces | |
HDMI Port | Standard HDMI female, v2.0 |
Other Interfaces |
3* Standard USB; 1* micro USB with OTG; 1*DC in Jack; 1*H DMI IN Port; 1*S/SPDIF (2CH, 5.1CH); 1*RJ45; 1* SD card |
Power | Adapter 5V 2A |
IR Sensor | 1*IR |
Power LED | 1* power LED with two - color |
Button | 1*Power Button |
1*Update Button(via one pin hole) | |
Other Features | |
Other Function | Antenna: Built-in antenna for WIFI |
Keyboard: Qwerty keyboard | |
Miracast/DLNA Support | |
Support original ecology and custom UI | |
Work Environment | 5- 35 Degrees, 30%--90% Humidity |
Storage Environment | -20 - 60 Degrees, 10%--90% Humidity |
Language | Multilanguage |
Dimension & Weight (Main Product) | |
Dimension | 120*120*24mm |
Package Contents | |
1 x TV box | |
1 x IR remote control | |
1 x USB cable | |
1 x HDMI cable | |
1 x Power adapter (A right AC Adapter will be sent as your shipping country) | |
1 x User manual |

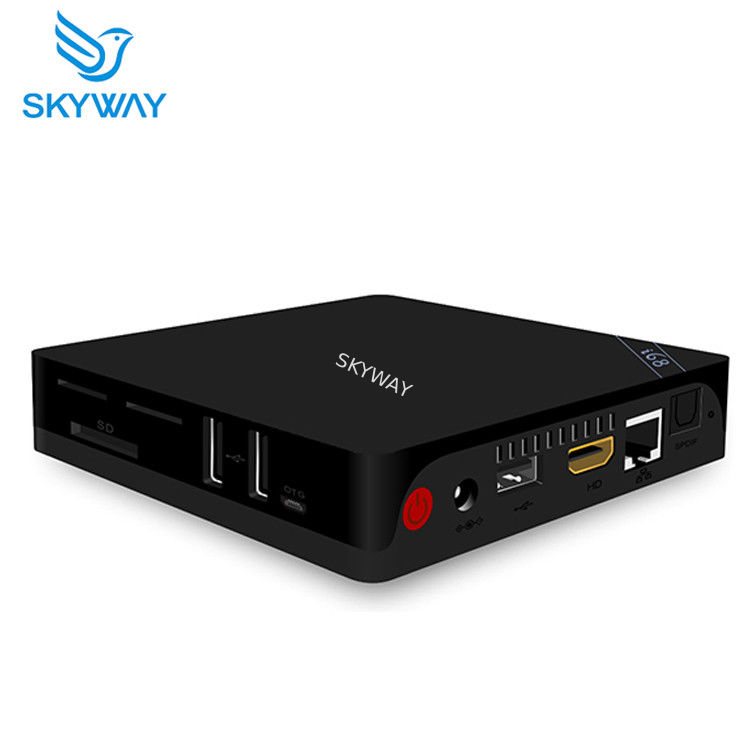

Product Show
